What Is a Dryer Thermal Fuse?
A one-shot safety that permanently cuts power to the dryer heater when the air inside gets too hot, almost always because the vent is clogged.

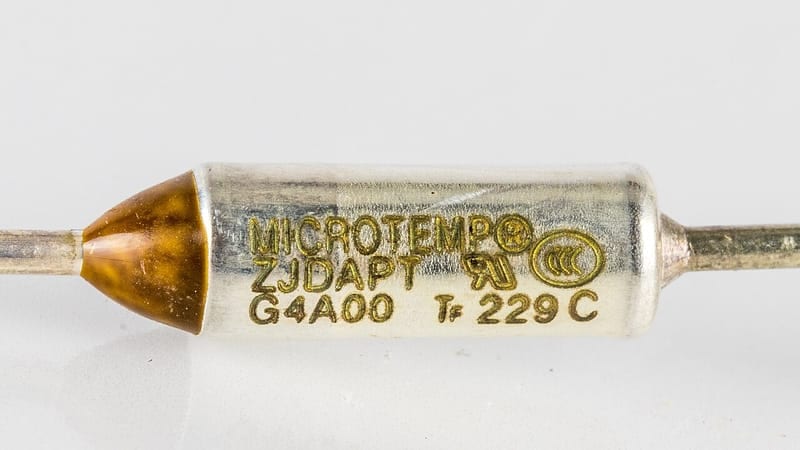

A small one-time safety device with two wire terminals, mounted on a dryer's blower housing or heater box. It holds a contact closed until the air passing it exceeds its rated temperature, then opens for good. On most dryers an open fuse means no heat while the drum still turns, and on some models it stops the motor too. It can't be reset. A blown fuse means the dryer overheated, and the cause is nearly always a lint-blocked vent.
Testing one takes a multimeter on continuity. Unplug the dryer, pull the two wires off the fuse, touch a probe to each terminal, and listen for the beep. Silence means it's open. Replacements are $8 to $15 and must match the dryer's model number, because the rated temperature varies. Fit the new one only after the vent has been cleaned end to end, or it blows again on the first load. Never bypass it with a jumper wire, even to test.
